Nylon Resin

Nano-Composite Nylon6

Mechanical Properties

Relationship with Water Absorption

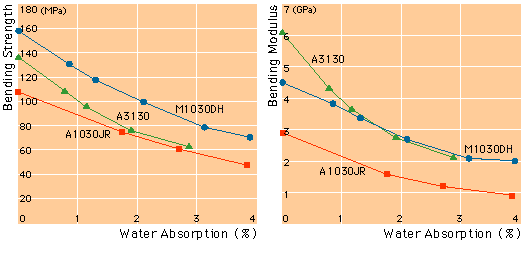

The relationships of the bending strength and modulus with the water absorption are shown in Figures 1 and 2.
Like common nylon 6 resins, the M1030DH resin decreases its strength and modulus by absorbing water, but retains other properties at higher level than an inorganic-fillered nylon 6 (A3130).

Figure 1. Relationship between bending
strength and water absorption
Figure 2. Relationship between bending
modulus and water absorption

Relationship with Water Absorption

Relationship with Temperature

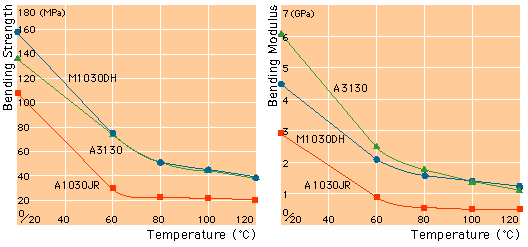

In Figures 3 and 4, the relationships of the bending strength and modulus with temperature are shown. The M1030DH resin exhibits properties similar to those of an inorganic-fillered nylon 6 (A3130). Use this graphs as reference date in estimating the properties of your products in the desirable use-temperature range.

Figure 3. Relationship between bending
strength and temperature
Figure 4. Relationship between bending
modulus and temperature

Relationship with Temperature
