Soft Super Engineering Plastics

Flexible Heat Resistant
Polyamide

New resin material with both flexibility and heat resistance at a high level.

Unitika's unique polymerization and morphology control technologies have made the heat-resistant polyamide XecoT™ flexible. While maintaining the characteristics of XecoT™ such as heat resistance, chemical resistance, and biomass-derived, it has achieved a low elastic modulus comparable to that of rubbers and elastomers. This material set a new concept of "SOFT SUPER ENGINEERING PLASTIC". We aim to apply this technology to flexible materials such as tubes, sealants, anti-vibration materials, and wearable devices.

Features

  • ・Flexibility
    Low modulus of 500 MPa or lower
  • ・Heat resistance
    The Melting point of 300℃ or higher
    Reflow soldering compatible
  • ・Long-term durability
    Resistant to Heat, water and chemicals
  • ・Processability
    Melt processable thermoplastic polyamide
  • ・Sustainability
    Plant-derived and lightweight material

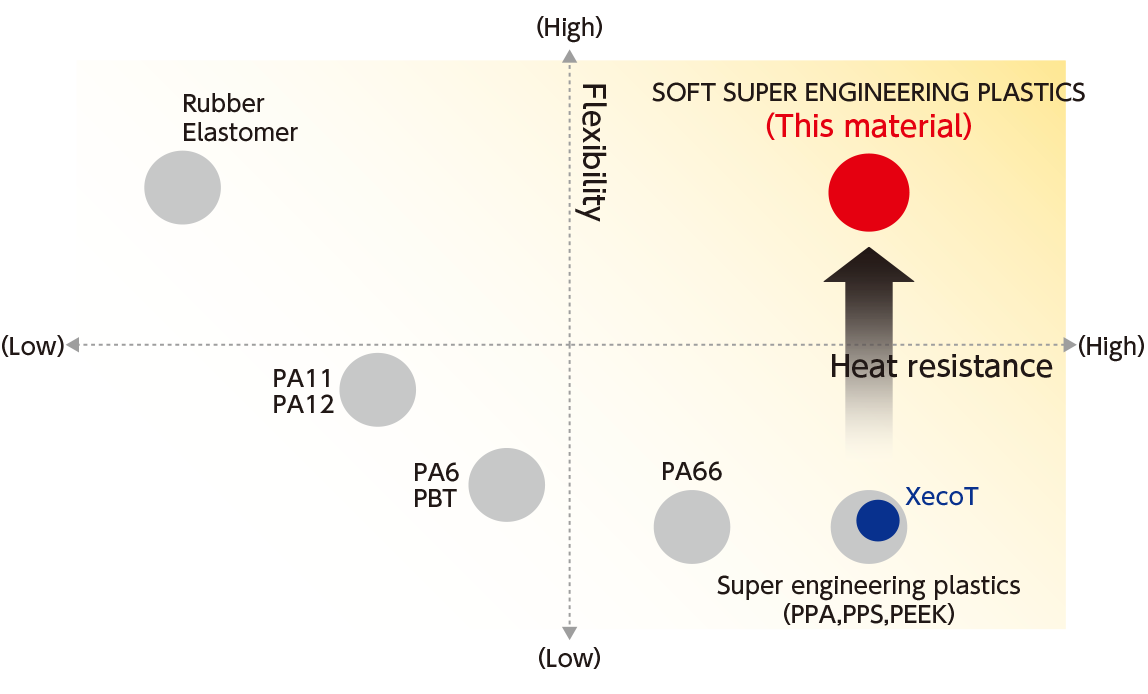

Heat resistance and Flexibility

Performance comparison figure

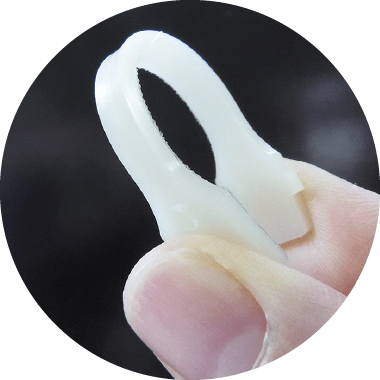

Profucts image

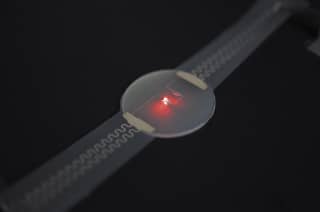

Application example

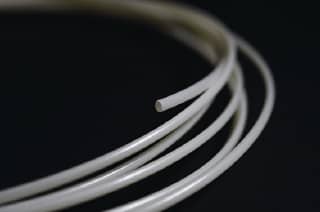

Tube
Tube

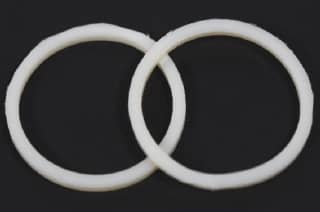

Sealing material
Sealing material

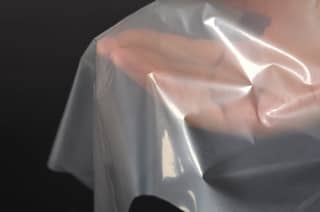

Film
Film
Film
Film

General properties

ItemsTest standardsUnitsSoft Super
Engineering
Plastic		Polyester
elastomer		XecoT™
(UNITIKA)
Chemical characteristicsDensityISO 1183g/cm30.991.261.14
Water absorption (23℃,50%RH)ISO 62%0.60.30.9
Mechanical characteristicsSurface hardnessJIS K 7215D677284
Tensile elastic modulusISO 527MPa4404202,600
Tensile strength403384
Tensile elongation%16031015
Flexural modulusISO 178MPa3005902,500
Flexural strength1325110
Melting pointTgDSC℃2012120
Tm312216315
Electrical characteristicsDielectric constant (5.8GHz)IEC 62810ー2.4ーー
Dielectric dissipation factor (5.8GHz)0.006ーー

Long-term heat resistance

glaph

Long-term oil resistance

glaph

Test oil: IRM901, 903 (125℃)

glaph

Test oil: IRM901, 903 (125℃)

Catalog

PDF Download (1.0MB)
