Novel Magnetic Materials

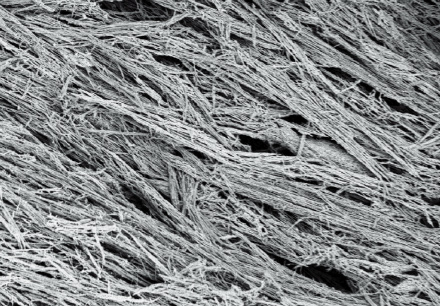

Magnetic Nanowires
Electromagnetic Shielding Materials for Millimeter and Sub-millimeter Waves.
High-performance electromagnetic shielding was achieved with the magnetic nanowires developed by UNITIKA. This technology prevents malfunction and performance degradation of the devices such as antenna and radar, which are the key components of Beyond 5G (6G) Communications and autonomous vehicles.
Features
- ・Excellent electromagnetic shielding effect for millimeter and sub-millimeter waves derived from a combination of dielectric loss and magnetic loss.
- ・Superior magnetic properties to conventional magnetic materials due to their high aspect ratio.
- ・Compatible with a wide range of materials including thermoplastic and thermoset.
Electromagnetic wave absorption properties
At sub-millimeter band
FeNi4Nanowire + Silicone rubber
(Nanowire loading:0.1vol%)
FeNi4FeNi4 Nanowire + Silicone rubber
(Nanowire loading:4.5vol%)
Silicone rubber
Thickness:400μm
Measured by THz-TDS
At millimeter band
Fe4Nanowire + Silicone rubber
(Nanowire loading:4.5vol%)
Thickness:100μm
Measured by Free-space method
At millimeter band
Fe4Nanowire + Silicone rubber
(Nanowire loading:4.5vol%)
Fe4Nanowire + Silicone rubber
(Nanowire loading:10vol%)
Thickness:100μm
Measured by Free-space method
Catalog
PDF Download (1.4MB)< June 01, 2023 >
