Soft Grounds

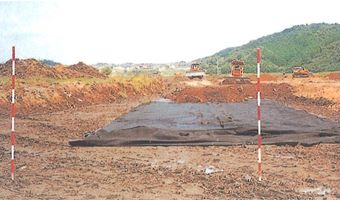

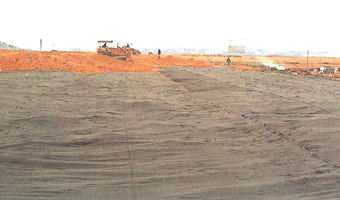

In addition to high strength, Needle Punched MARIX has the advantage of being an extensible sheet that does not tear easily, supporting the embankment load and helping to make the ground stable. Not only does it secure trafficability for heavy equipment, but the Needle Punched MARIX sheet separates the embankment from the soft ground layer. It can also drain compressed water.
Main applications and applicable Item No.
| Location | Construction method | AN200 | AN300 | AN400 | AN500 |
|---|---|---|---|---|---|
| Drained lands /landfills /developed lands |

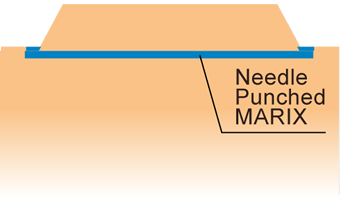

Soft ground stabilization and trafficability | ○ | ○ | ○ | ○ |

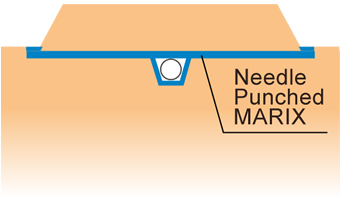

| Horizontal drain for embankment | ○ | ○ | ○ | ||
| Underdrainage | ○ | ○ |
Properties [catalog values]
| Item No. | Specification | Weight (g/m²) |
Thickness (1) (mm) |
Thickness (2) (mm) |
Tensile strength (N/5cm) |
Elongation (%) |
Tearing strength (N) |
Water permeability coefficient (cm/sec) |
Burst Strength (N) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Width (m) |
Roll length (m) |
*MD | *CD | *MD | *CD | *MD | *CD | Vertical direction |
Horizontal direction |
|||||
| AN200 B | Black | 2.1 | 100 | 200 | 2.1 | 1.6 | 630 | 500 | 60 | 60 | 195 | 245 | 1×10-1 | 5×10-1 | – |
| AN300 B | Black | 2.1/4.2 | 50 | 300 | 3.0 | 2.4 | 1170 | 980 | 60 | 60 | 245 | 290 | – | ||
| AN400 B | Black | 2.1/4.2 | 50 | 400 | 4.0 | 3.0 | 1370 | 1170 | 60 | 60 | 340 | 390 | 800 | ||
| AN500 B | Black | 2.1/4.2 | 50 | 500 | 5.0 | 4.2 | 1765 | 1470 | 60 | 60 | 440 | 535 | 1000 | ||
* MD(machine direction)/*CD(cross direction)
* The measurement method shall comply with the following.
Tensile strength/tensile elongation: JIS L-1908
Tearing strength: JIS L-1096 (single tongue method)
Burst Strength: ASTM D 4833
Water permeability coefficient: JIS A-1218
Thickness (1): JIS L-1096 (pressure 7g/cm²)
Thickness (2): JIS L-1908 (pressure 20g/cm²)
The AN types are hydrophilically treated.
