Needle Punched MARIX
Needle-punched polyester nonwoven fabric

Needle Punched MARIX is needle-punched polyester nonwoven fabric sheet that takes advantage of the superb features of Unitika's spunbond nonwoven fabric. It boasts outstanding strength and durability and separates sediment and water using the filter effect unique to spunbond nonwoven fabric. This specially processed fabric can be used in a variety of applications.

  • Offers an excellent buffering effect (protection performance).
  • Highly effective in separating the upper and lower layers.
  • Use of spunbond nonwoven fabric enables drainage in both vertical and horizontal directions.
  • In the case of either vertical or horizontal drainage, the sheet maintains water permeability equivalent to or greater than sand (10-1 or more) and seldom becomes clogged.
  • Since, in addition to being very strong, the sheet is highly extensible and does not easily tear, it holds the ground firmly in place.
  • Made of polyester, a material that is resistant to changes in weather, temperature, etc. and whose properties remain almost unchanged even under water or the ground.
  • The sheet creeps less than those made of other materials when left under constant load for a long period of time.
  • Flexibility and high coefficient of friction with soil allows soil structures to be built in an integrated manner.

Image : Needle Punched MARIX

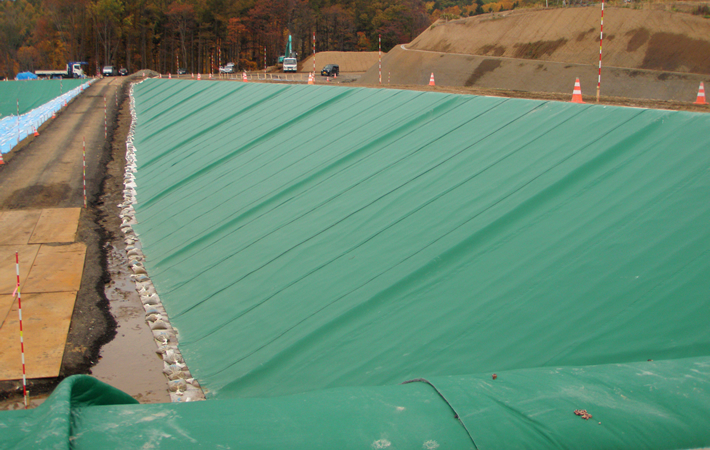

Needle Punched MARIX used as a light-blocking mat at a repository site

Specifications & properties

(Needle Punched MARIX is used as specially processed products such as a weed control sheet, light-blocking mat for the repository site, and materials related to disaster recovery.)

Recycled Needle Punched MARIX
Polyester spunbond nonwoven fabric made of recycled materials

Recycled Needle Punched MARIX is polyester spunbond nonwoven fabric, made of recycled PET bottle flakes and nonwoven product remnants, that takes advantage of the existing excellent spunbond technologies. The product has received Eco Mark certification from the Japan Environment Association (certification number 00105029). It boasts outstanding water permeability and durability.


Image : Cross-section view of the fiber

Spunbond nonwoven fabric having a double-layered structure in which virgin PET material is used as the sheath with the core made of recycled PET material. The ratio of recycled PET is 50% or more.

How PET bottle flakes and nonwoven product remnants are recycled

Image : How PET bottle flakes and nonwoven product remnants are recycled

< Specifications and properties >

Item No. Specification Weight
Color Roll
AN300 ECO Black 50 300 3.0 2.4 15.6 12.7 780 635 80 65 55 50
AN400 ECO Black 50 400 4.0 3.0 20.0 20.0 1000 1000 105 105 60 60
AN500 ECO Black 50 500 5.0 4.2 35.0 23.5 1765 1175 180 120 60 60

* MD(machine direction)/*CD(cross direction)

* The measurement method shall comply with the following.

  • Tensile strength and degree of elongation: JIS L-1908
  • Tearing strength: JIS L-1096 (single-tongue method)
  • Penetration resistance: ASTM D 4833
  • Water permeability coefficient: JIS A-1218
  • Thickness (1): JIS L-1096 (pressure 7 g/cm²)
  • Thickness (2): JIS L-1908 (pressure 20 g/cm²)
  • The AN type is processed to provide the hydrophilic property.
  • Sewing processing is also available (at an extra cost).
  • The AN500 ECO sheet is compliant with the port-use sand prevention sheet standard of the Ministry of Land, Infrastructure, Transport and Tourism.
