Civil Engineering Materials

Weed control / Root control

Weed control sheets

High-performance weed control sheets made of polyester Spunbond nonwoven fabric. They are superior in light blocking and flame resistance properties and prevent the germination of flying seeds. What's more, featuring water permeability and air permeability as well, the sheets keep weeds out without affecting plants. They provide substantial labor savings in weeding work and are useful for maintaining the aesthetic quality of cities and towns.

Usage examples

  • Expressway construction
  • Expressway construction

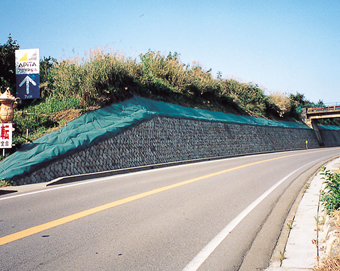

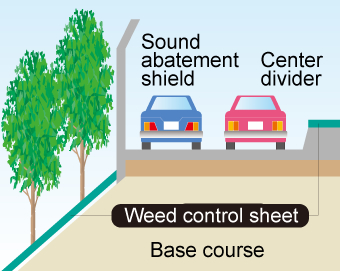

Expressway construction
Planted areas in roadside zones, center dividers, and interchanges

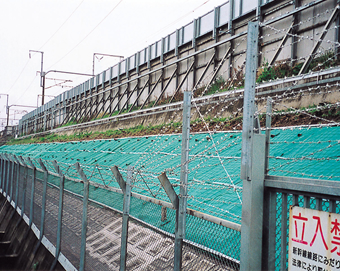

  • Construction work around railways
  • Construction work around railways

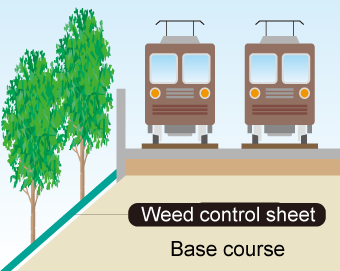

Construction work around railways
Areas prone to become weedy around railways, below power line towers, electric power substations, etc.

  • Park construction work
  • Park construction work

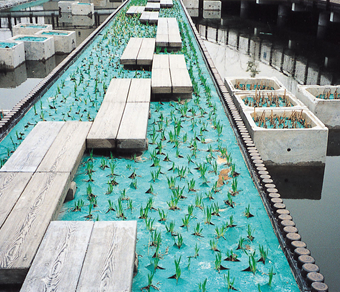

Park construction work

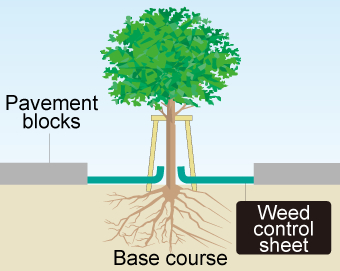

Areas around park and roadside trees

Specification

Item No. Color Width Application
AG200/GRE Green (specially treated surface) 2.0m×100m/1.0m×100m Exposure type
AG200/BRE Brown (specially treated surface) 2.0m×100m/1.0m×100m Exposure type
AG100/GRE Green (specially treated surface) 2.0m×100m/1.0m×100m Exposure type
AG100/BRE Brown (specially treated surface) 2.0m×100m/1.0m×100m Exposure type
81306/BSO Black 2.1m×100m/1.05m×100m Underground type
82006/BSO Black 2.1m×100m/1.05m×100m Underground type
82606/BSO Black 2.1m×100m/1.05m×100m Underground type
G1003/BRE Brown 2.1m×100m/1.05m×100m Biodegradability

* AG200/BRE, AG100/BRE, and adhesive tape (brown) are made to order. For information, contact us.

Properties [catalog values]

Item No. Weight
(g/m²)
Thickness
(mm)
Tensile
strength
(N/5cm)
Elongation
(%)
Shading
rate
(%)
Water
permeability
coefficient
(cm/sec)
Air
permeability
(cc/cm²/sec)
Flame
resistance
Durability
*MD *CD *MD *CD Vertical When
exposed
When
buried
AG200 180 1.0 392 245 35 40 100 1×10-3 10 Supported Approx.
5 years
Approx.
10 years
AG100 110 0.4 250 150 10 10 97 1×10-2 30 Not
supported
Approx.
3 year
Approx.
10 years
81306 130 0.4 500 230 30 30 99 1×10-2 30 Not
supported
Approx.
1 year
Approx.
10 years
82006 200 0.5 750 300 30 30 99 1×10-2 15 Not
supported
Approx.
1 year
Approx.
10 years
82606 260 0.6 950 400 30 30 99 1×10-2 10 Not
supported
Approx.
1 year
Approx.
10 years
G1003 100 0.4 150 100 10 10 95 1×10-2 100 Not
supported

* MD(machine direction)/*CD(cross direction)

Root control sheets

The Needle Punched MARIX root control sheets has root repellent on them, controlling roots from spreading in their growth direction and causing them to grow in other directions. They control the entry of roots and effectively keep structures from being damaged.

Usage examples

Control of unevenness in a paved road caused by roots of roadside trees

Control of unevenness in a paved road caused by roots of roadside trees

  • Control of unevenness in a paved road caused by roots of roadside trees
  • Control of unevenness in a paved road caused by roots of roadside treesno sheet used
  • Control of unevenness in a paved road caused by roots of roadside treessheet used
  • 舗道の植栽の根による凹凸の防止no sheet used
  • 舗道の植栽の根による凹凸の防止sheet used

Control of the entry of roots into underground pipes

  • Control of the entry of roots into underground pipesno sheet used
  • Control of the entry of roots into underground pipessheet used

Control of the entry of roots into foundation walls

  • Control of the entry of roots into foundation wallsno sheet used
  • Control of the entry of roots into foundation wallssheet used

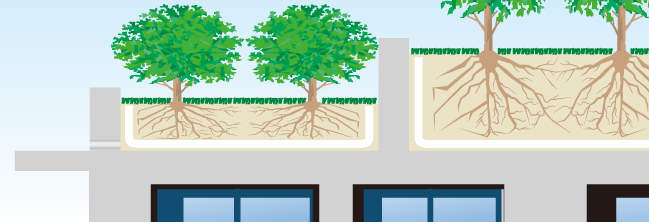

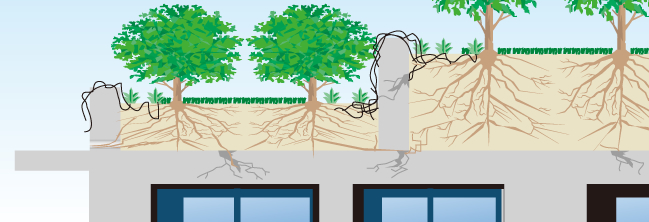

Control of the entry of roots into the concrete below a rooftop garden

  • Control of the entry of roots into the concrete below a rooftop gardenno sheet used
  • Control of the entry of roots into the concrete below a rooftop gardensheet used

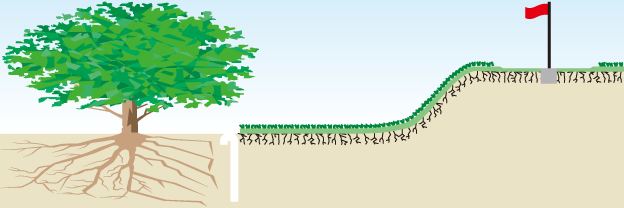

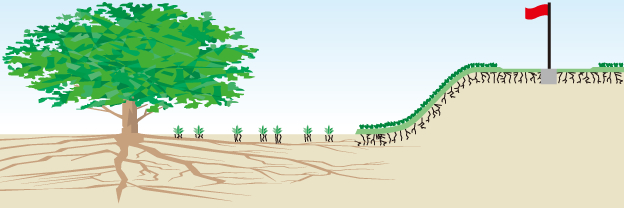

Control of unevenness in fairways in golf courses

  • Control of unevenness in fairways in golf coursesno sheet used
  • Control of unevenness in fairways in golf coursessheet used

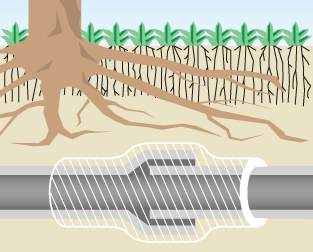

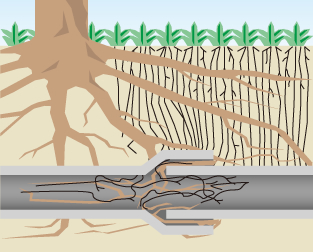

Control of the entry of roots into drainpipe joints

  • Control of the entry of roots into drainpipe jointsno sheet used
  • Control of the entry of roots into drainpipe jointssheet used

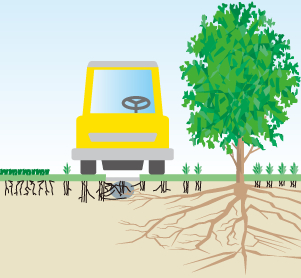

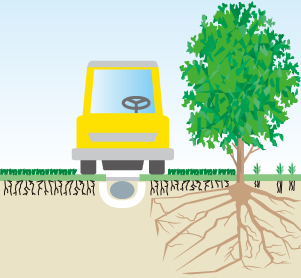

Control of the entry of roots into cart paths in golf courses

  • Control of the entry of roots into cart paths in golf coursesno sheet used
  • Control of the entry of roots into cart paths in golf coursessheet used

Properties [catalog values]

Item No. Specification Thickness
2kPa load
(mm)
Weight
(g/m²)
Tensile
strength
(N/5cm)
Elongation
(%)
Water
permeability
coefficient
(cm/sec)
Color Width
(m)
Roll
length
(m)
Weight
per roll
(kg)
*MD *CD *MD *CD Vertical
PB150/WRP White 1.0 20 3.0 1.0 150 400 300 30 35 1×10-1

(The values shown above are the standard property values.)

*MD(machine direction)/*CD(cross direction)
* Measurement method: Shall comply with JIS L-1908.
* 50-cm-wide sewn sheets are also available. A processing fee is required.

(The values shown above are the standard property values.)
